600mA低壓降線性調節器 DIODES AP2317
- 品牌：???DIODES
- 型號：???AP2317
Description
The AP2317 is a series of low dropout three-terminal regulators with adropout of 1.1V at 600mA output current.

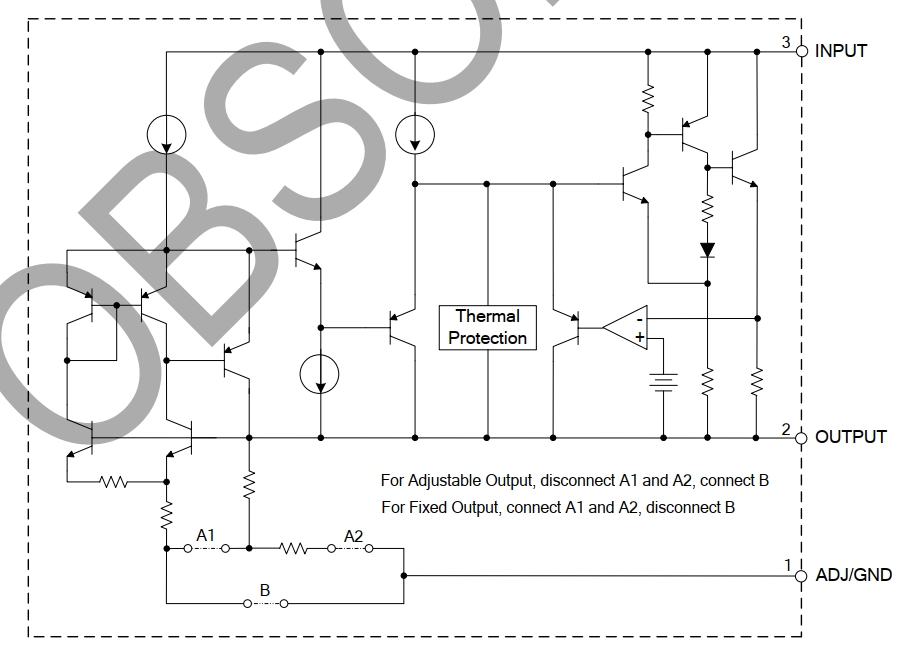

This product has been optimized for low voltage where transientresponse and minimum input voltage are critical. The AP2317provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to bewithin ±1%. On-chip thermal shutdown provides protection against
any combination of overload and ambient temperatures that wouldcreate excessive junction temperatures.
The AP2317 is available in 2.5V and 3.3V versions. The fixedversions integrate the corresponding resistor divider. It is alsoavailable in an adjustable version which can set the output voltagewith two external resistors.
The AP2317 is available in the industry standard SOT-89, SOT-223and TO-263-3 (for 3.3V only) power packages.
Features
? Low Dropout Voltage: 1.1V at 600mA Output Current
? Output Noise from 10Hz to 10kHz: 0.003% of VOUT
? PSRR at IOUT = 300mA and f = 120Hz: 75dB
? Output Voltage Accuracy: ±1%
? On-chip Thermal Shutdown
? Maximum Quiescent Current: IQMAX = 5mA
? ESD (Human Body Model): 3.5kV
? Operation Junction Temperature: -40 to +125°C
Applications
? DVD/CD-ROM
? USB Device
? Add-on Card
? DVD Player
? PC Motherboard
我司是DIODES正式授權代理商，可以提供技術支持，需要技術資料與樣品可以向我司業務人員索?。?3923795851孫生-微信同號）
