1.25V/1.24V并聯穩壓器，帶四路運算放大器18V DIODES AP4303
- 品牌：???DIODES
- 型號：???AP4303

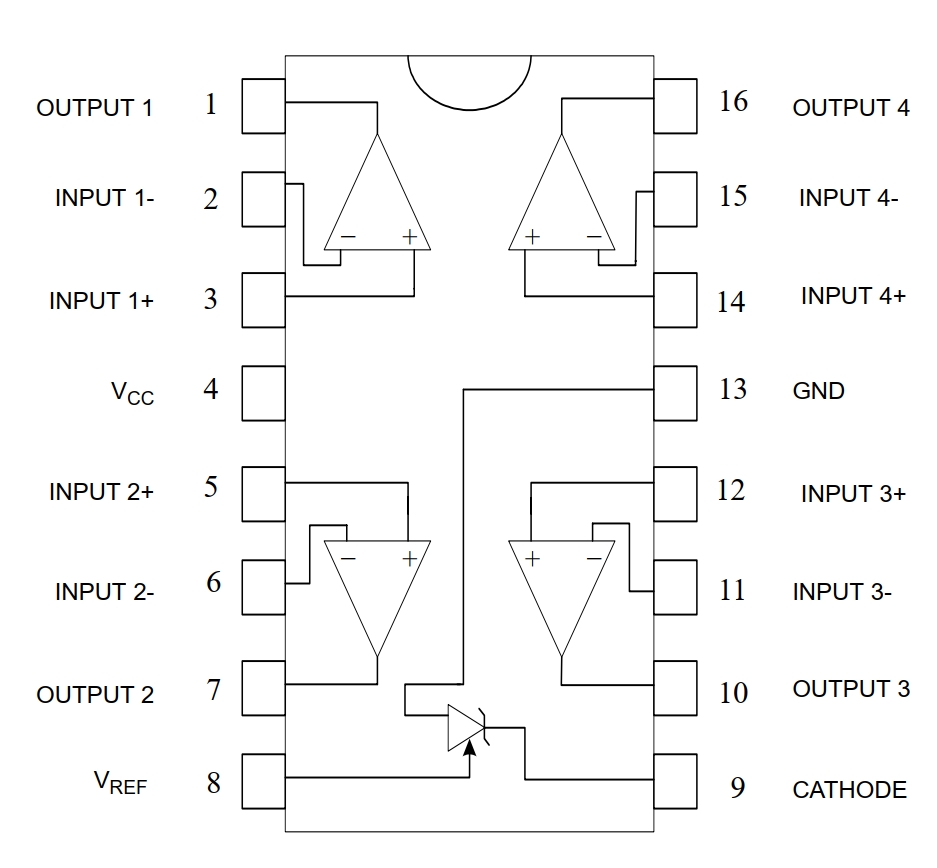

General Description
The AP4303 is a monolithic IC that contains quad operational amplifiers and a precision shunt regulator,1.25Vfor AP4303-C or 1.24V for AP4303-D respectively. It is specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies.
The four Op Amps feature accurate voltage and current control. Combining a stable voltage reference with the four Op Amps makes AP4303 ideal for use in multifunction charger, power supply voltage monitor, signal processing and control system.
The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost.
The AP4303 is available in standard packages of DIP-16 and SOIC-16.
Features
Op Amp
· Input Offset Voltage: 0.5mV
· Supply Current: 250μA per Op Amp at 5.0V Supply Voltage
· Unity Gain Bandwidth: 1MHz
· Output Voltage Swing: 0 to (VCC-1.5)V
· Power Supply Range: 3 to 18VVoltage Reference
· Reference Voltage Tolerance: 0.5%, 1%
· Sink Current Capability from 0.1 to 80mA
· Output Dynamic Impedance: 0.2?
· Externally Adjusted Output Voltage Reference:
1.25V for AP4303-C and 1.24V for AP4303-D
Applications
· Battery Charger
· Switching Power Supply
